Dini Argeo TPWX3GD Hazardous Zone 2 ATEX Weigh Scale Pallet Truck
Pallet truck scales, with built-in electronic weighing, suitable for harsh working conditions and dangerous areas classified as hazardous (ZONE 2, 22) in accordance with Ex II 3GD IIC T6 T130°C X protection. The Atex certified four load cell weight detection guarantees the best accuracy in all work conditions.
Available also CE-M APPROVED.
Description
Main Features

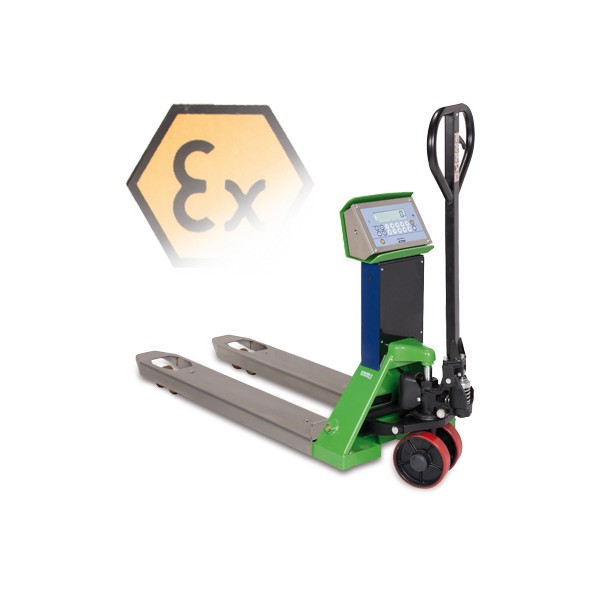

(Please note, the standard truck detailed below is fitted with painted mild steel forks, the fully stainless steel forks shown in the picture are an optional extra and the extra price is in the price section SEE Suffix Code SSFX!)
Maximum lifting capacity: 2000Kg.
Accuracy: +/- 0.1% of the maximum capacity.
Fork dimensions 1150 x 550 x 85 mm.
Weighs about 120 kg.
Bearing oven-fire painted structure in extra thick sheet steel.
Standard fitted swivelling column head.
Steering wheels and double loading rollers with a poliurethane coating.
Atex certified, 4 stainless steel IP68 shear-beam load cells.
Indicator with easy to clean satined stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
Calibration and Set-Up parameters configurable from keyboard or PC.
Power supply through extractable battery, rechargeable in safe zone.
40-hour approximate operating time.
Programmable automatic switch-off.
Battery level indication.
Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
Selectable Functions
High Resolution Weighing x 10
Net/Gross or lb/kg conversion
Accumulation
Formula weighing
+/- Checkweighing
Percentage weighing
Counting (Max. resolution of 1.500.000 divisions)
In/Out Truck weighing
Hold and Peak
Peer-to-peer (up to 4 remote connectable indicators)
Set Point Control (with optional interface)
Options only available at order placement.
Parking brake system with command pedal mounted on steering wheels.
Set of steering wheels in Vulkolan (nonstainable).
680 mm fork width (ask for price estimate).
Special fork length from 850 to 1500 mm (ask for price estimate).
3000 kg capacity (ask for price estimate).
Special models and sizes (ask for estimate).
Special wheels available with price estimate.
Key Board Functions
Zeroing, Automatic tare, Presettable tare, Print and/or data transmission command, Function command
Additional information
| Models | LWTPWX3GD, LWTPWX3GD CE-M APPROVED, LWTPWX3GD SSFX, LWTPWX3GD SSFX CE-M APPROVED |
|---|
