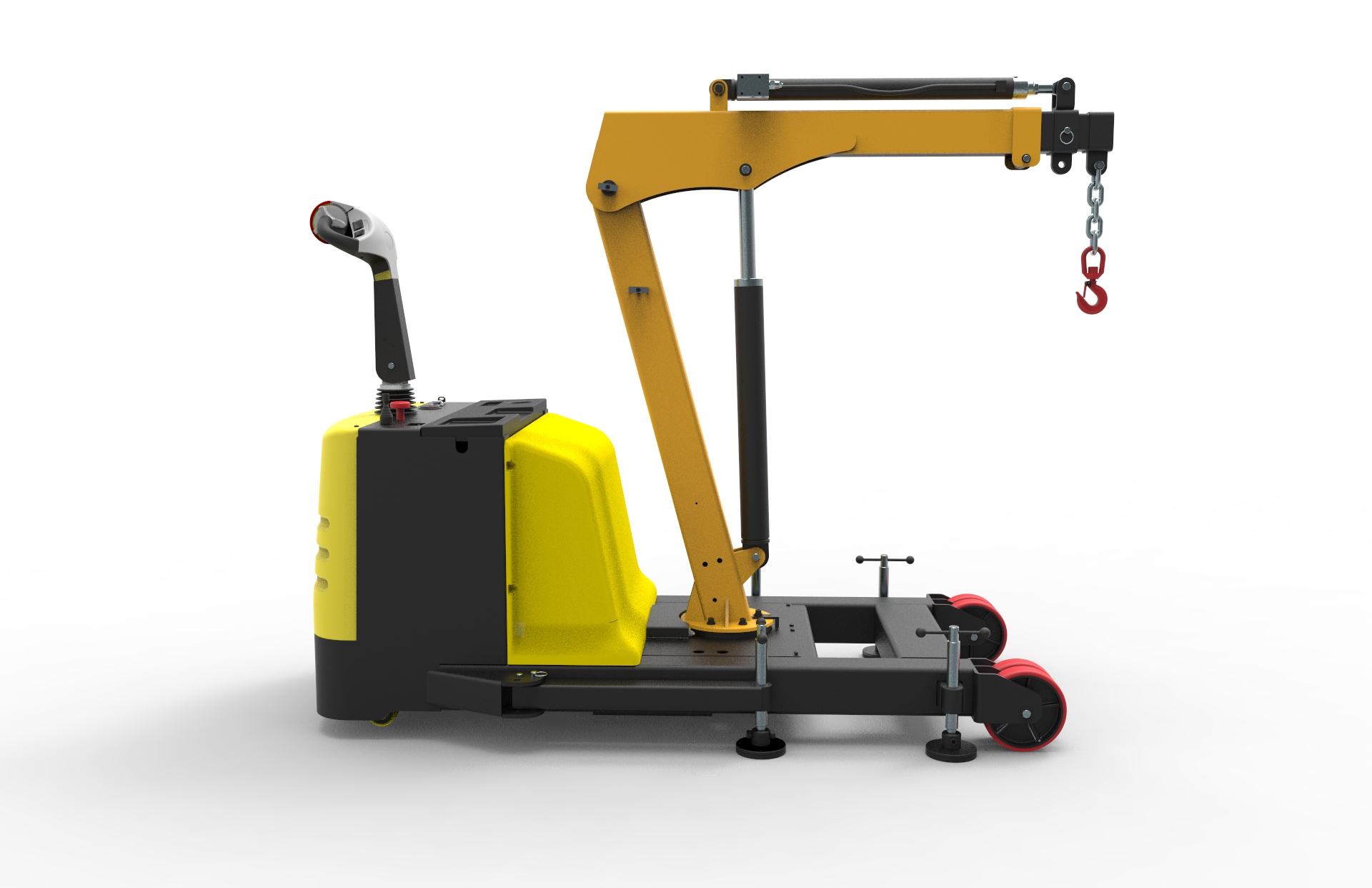

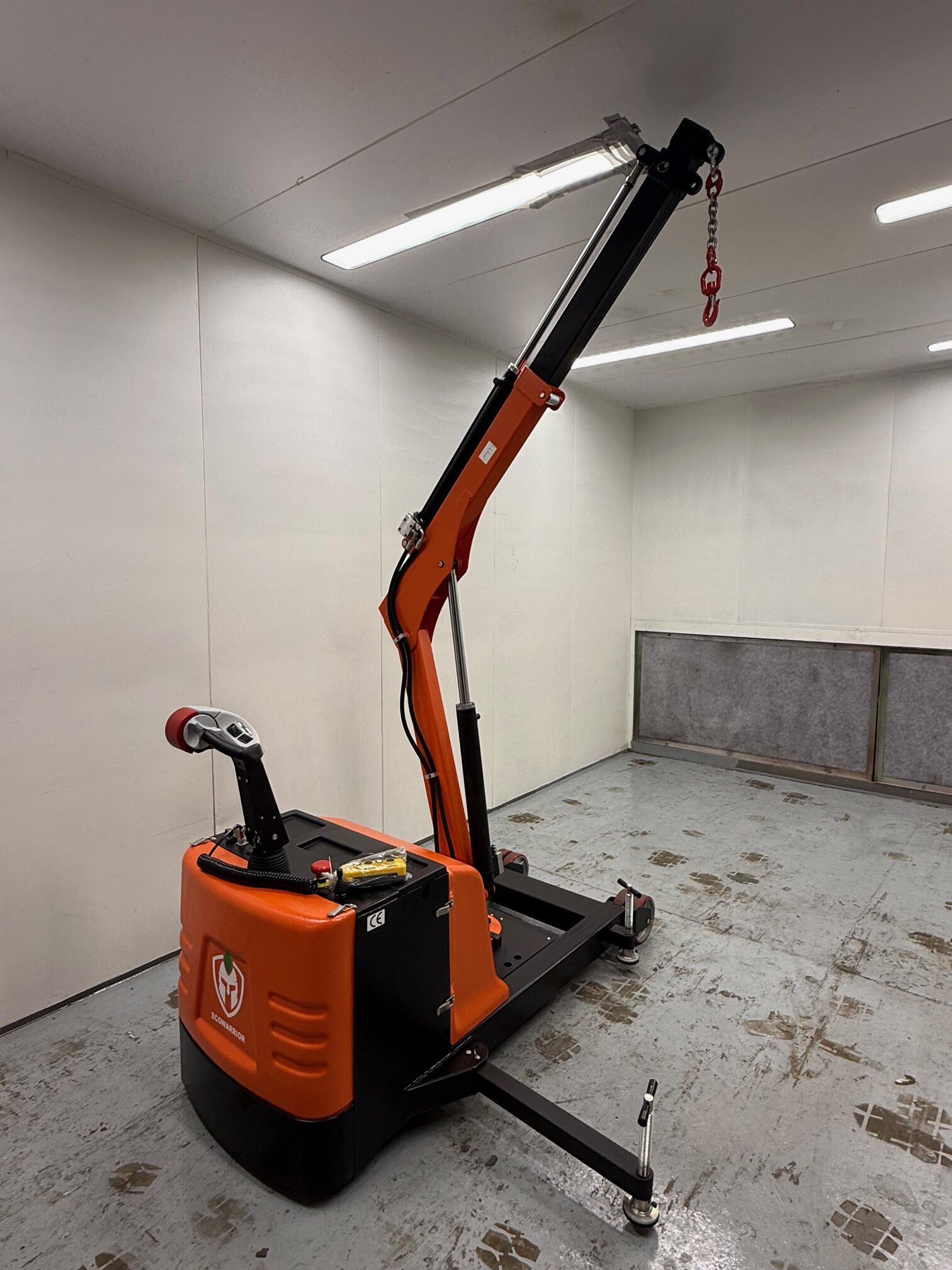

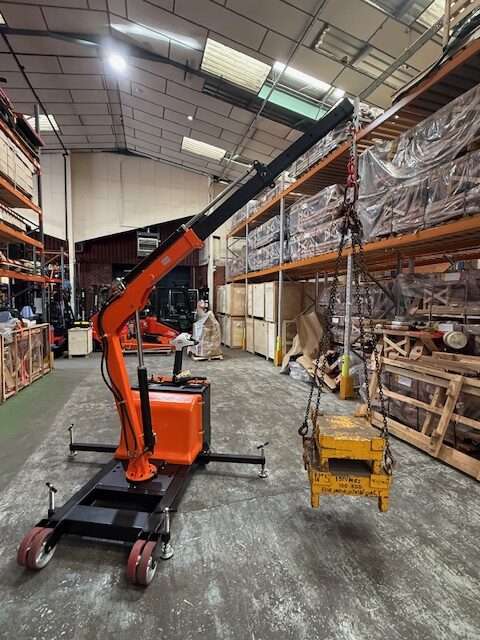

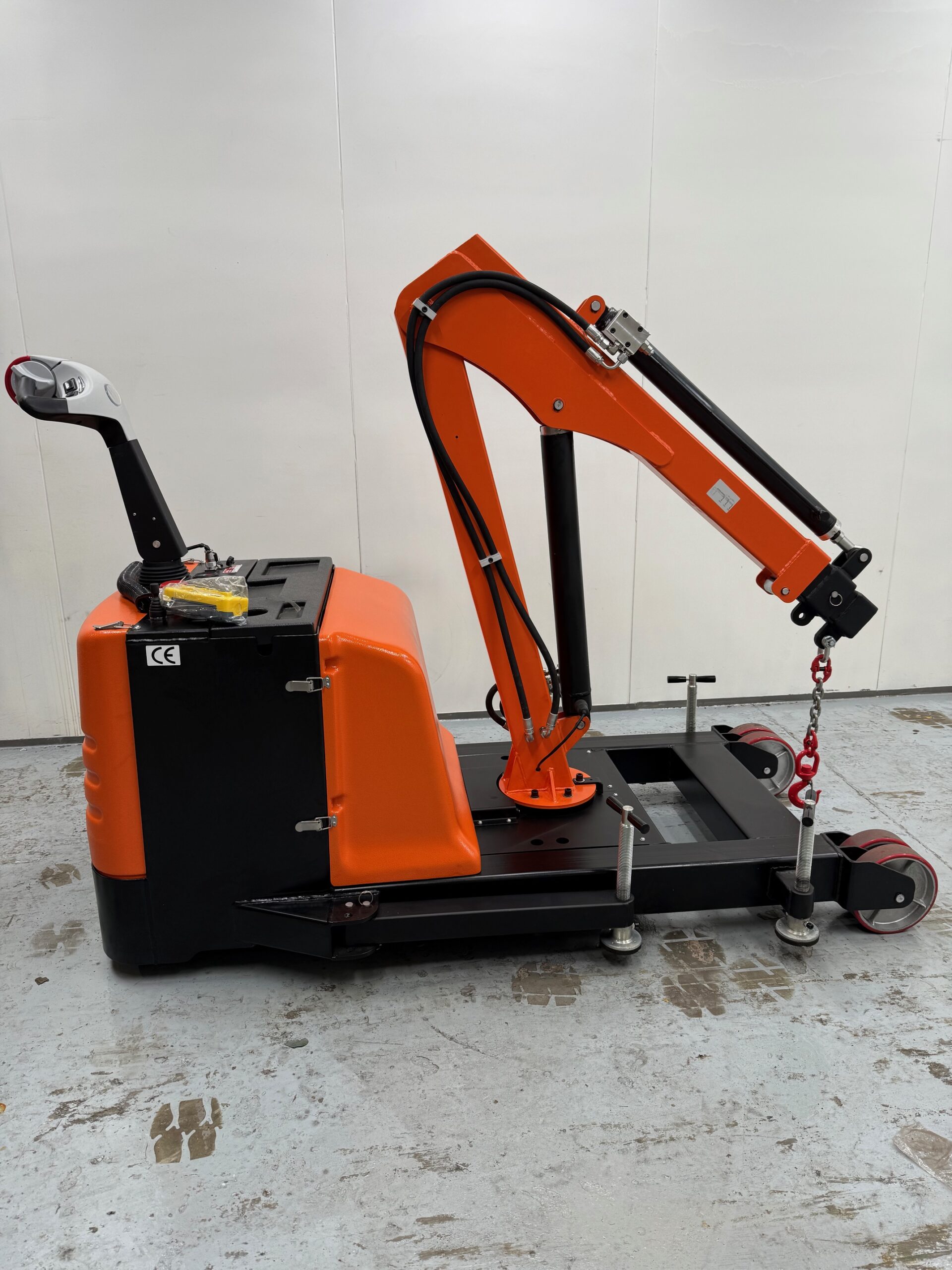

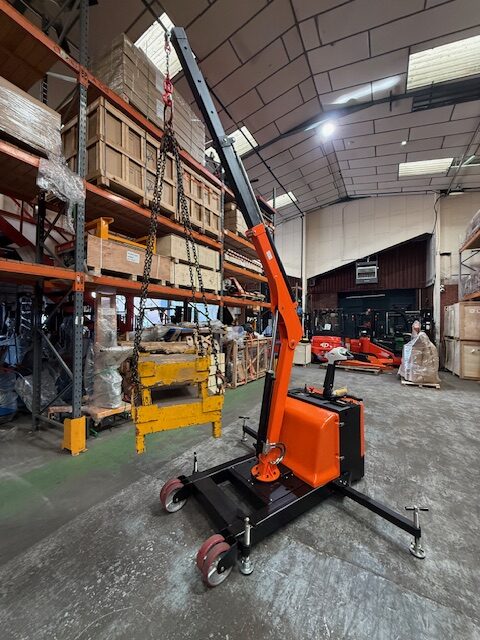

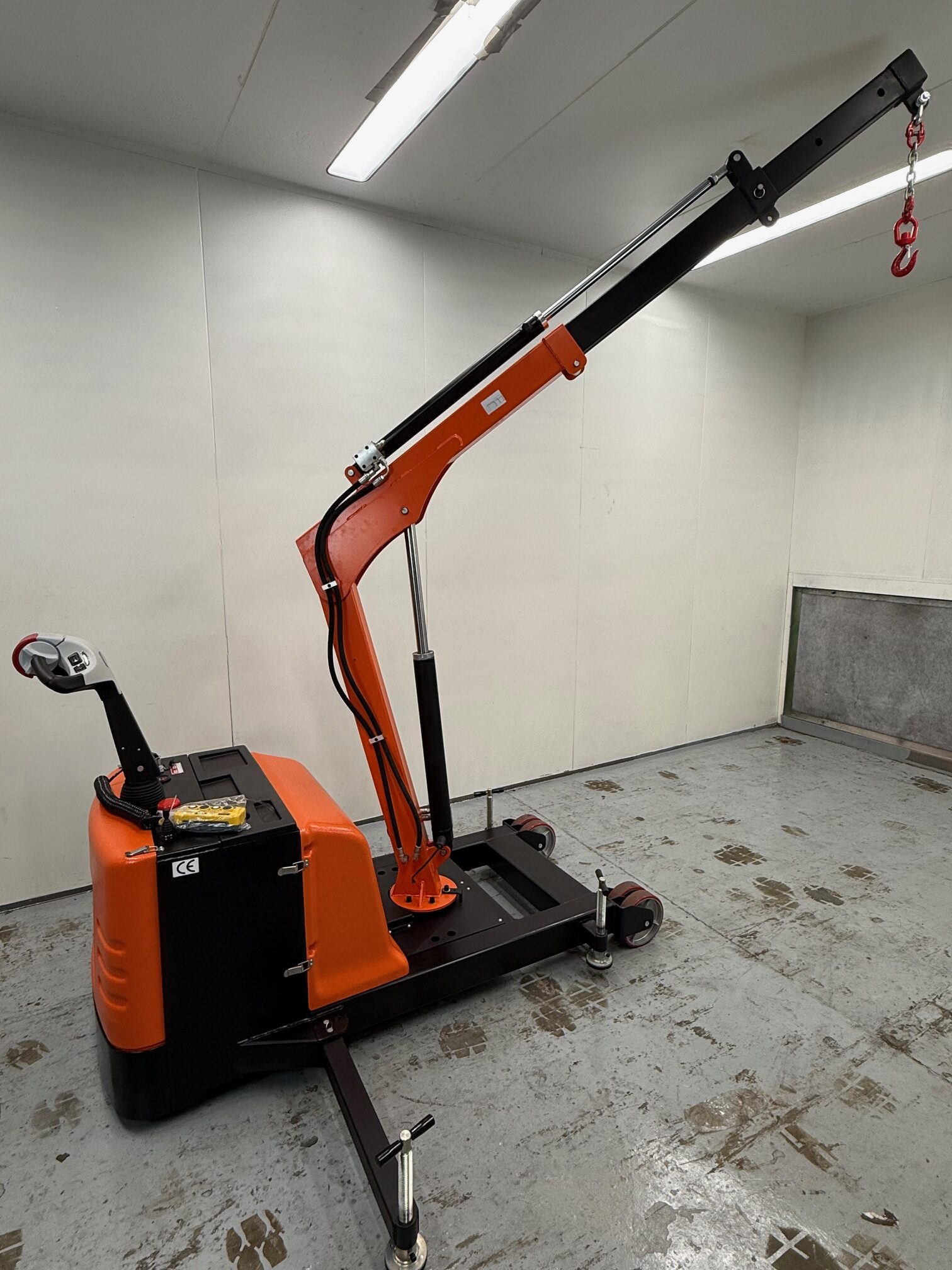

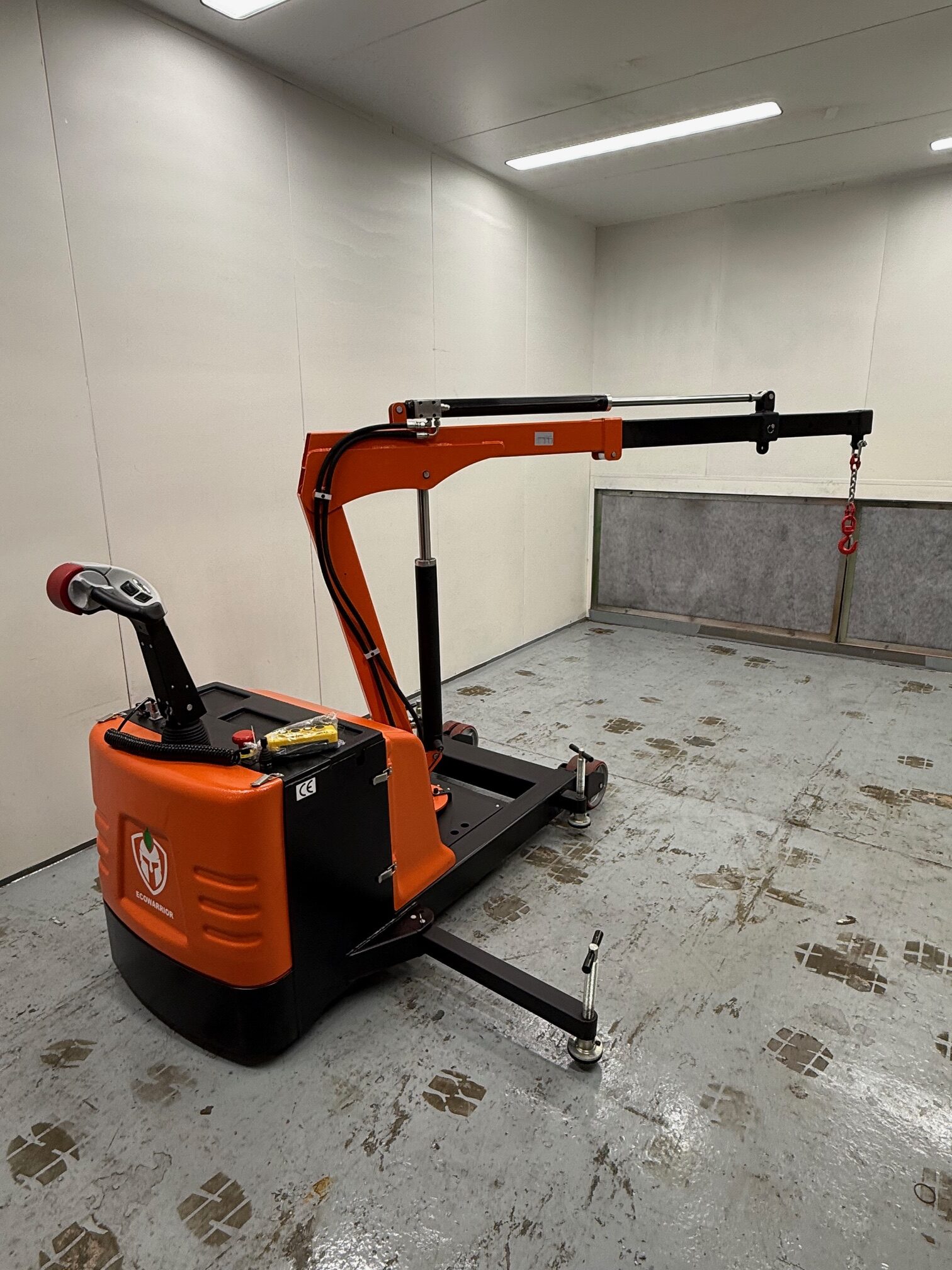

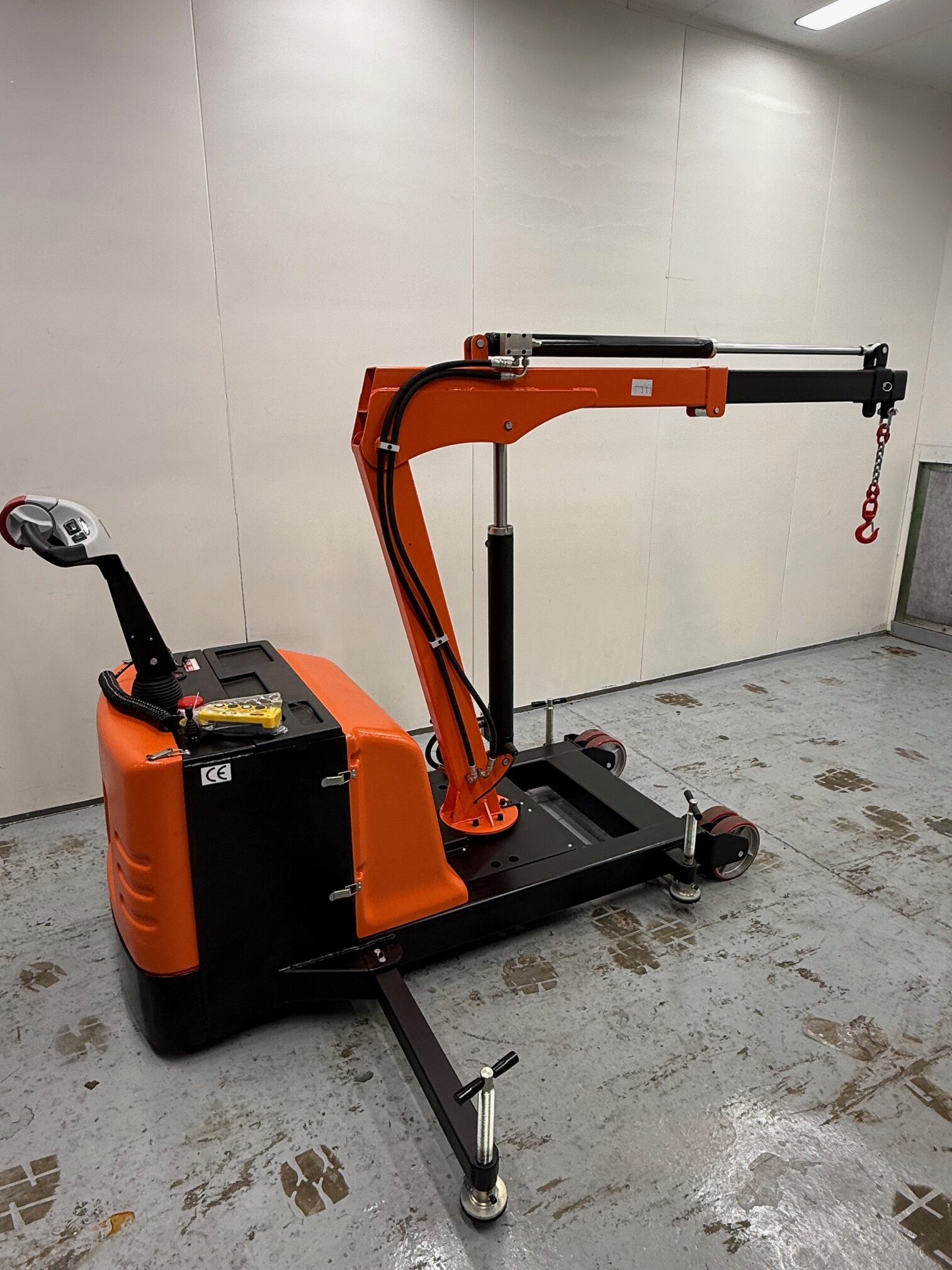

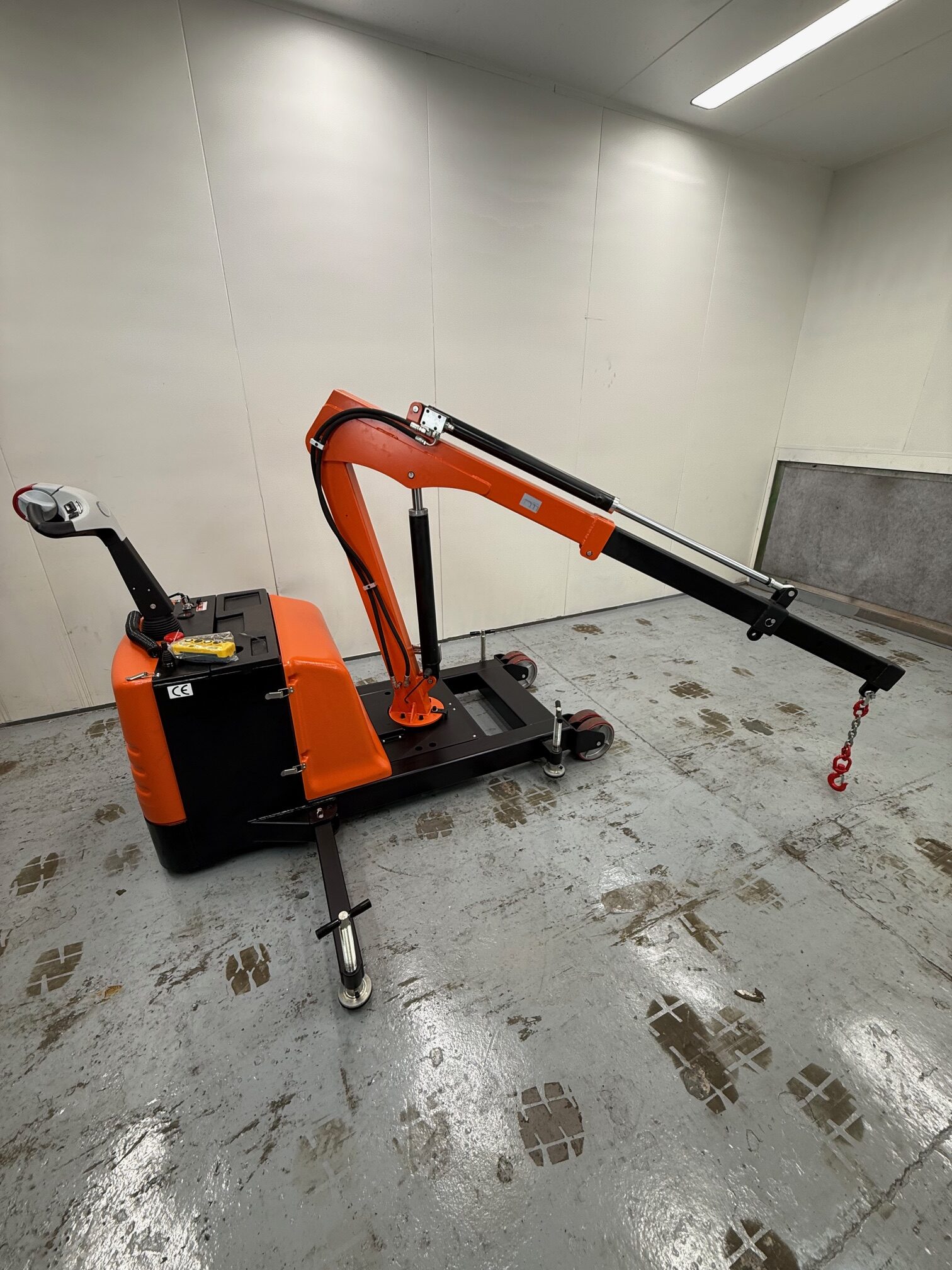

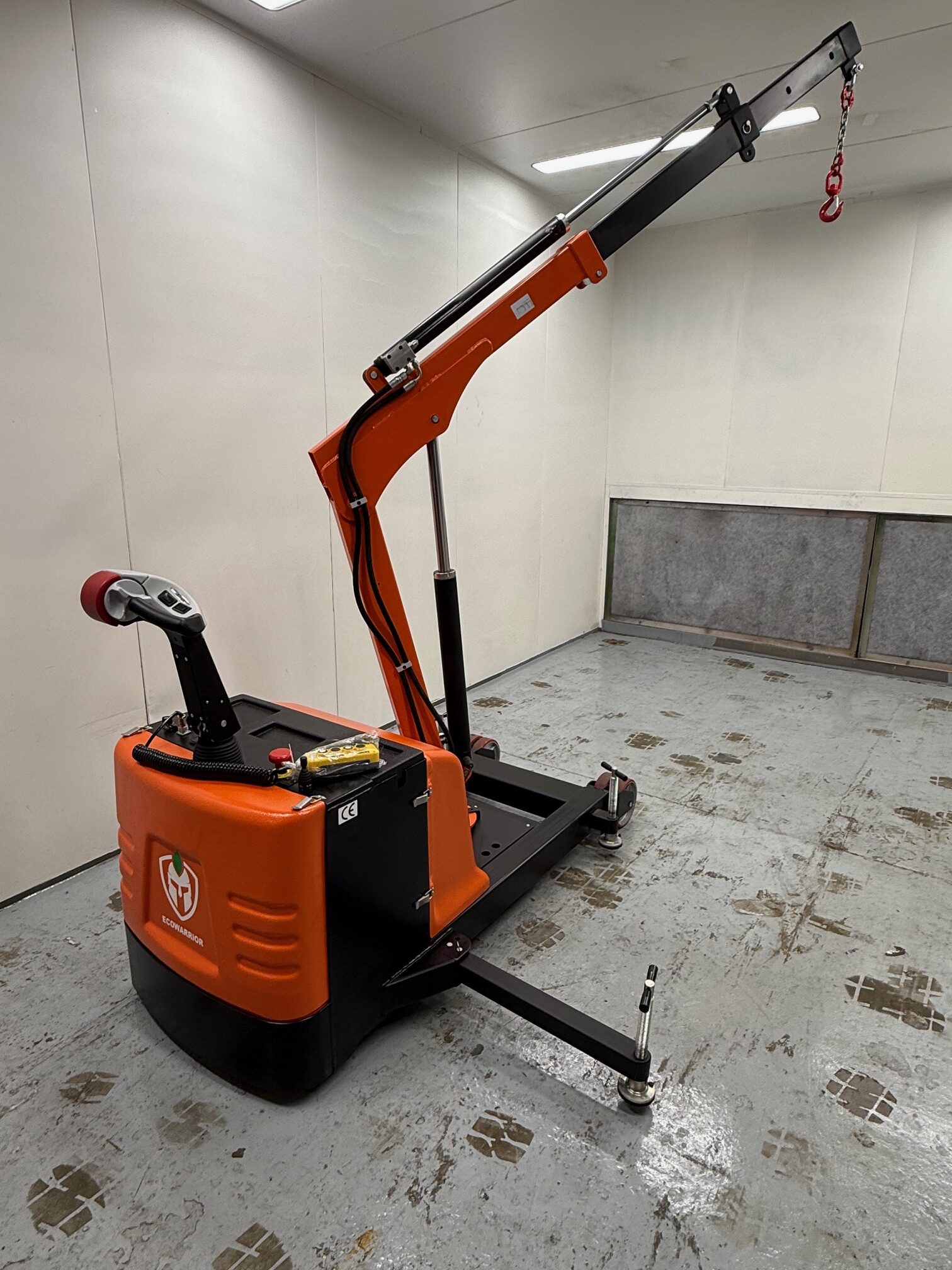

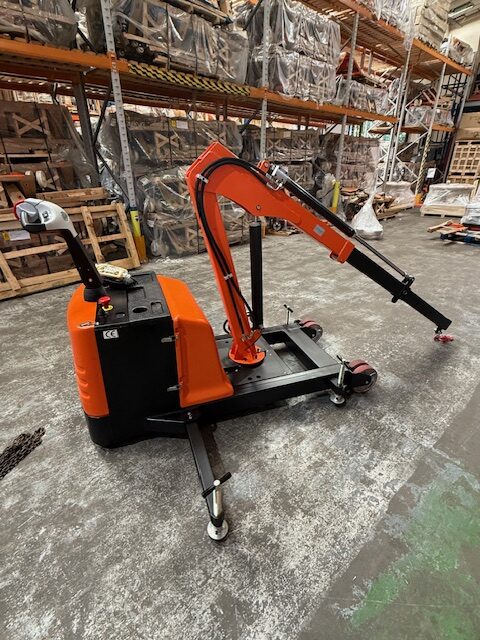

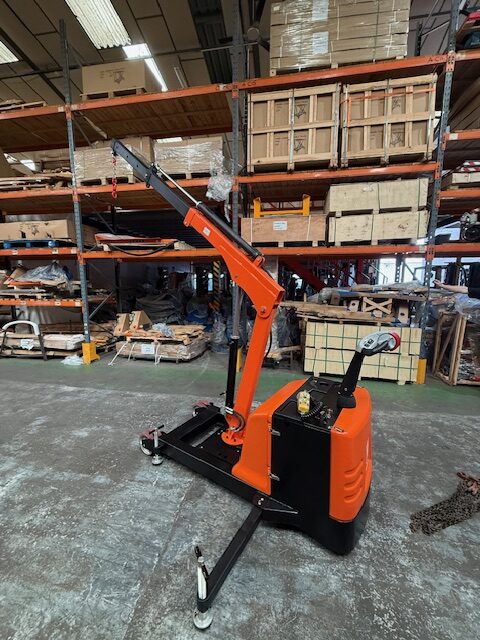

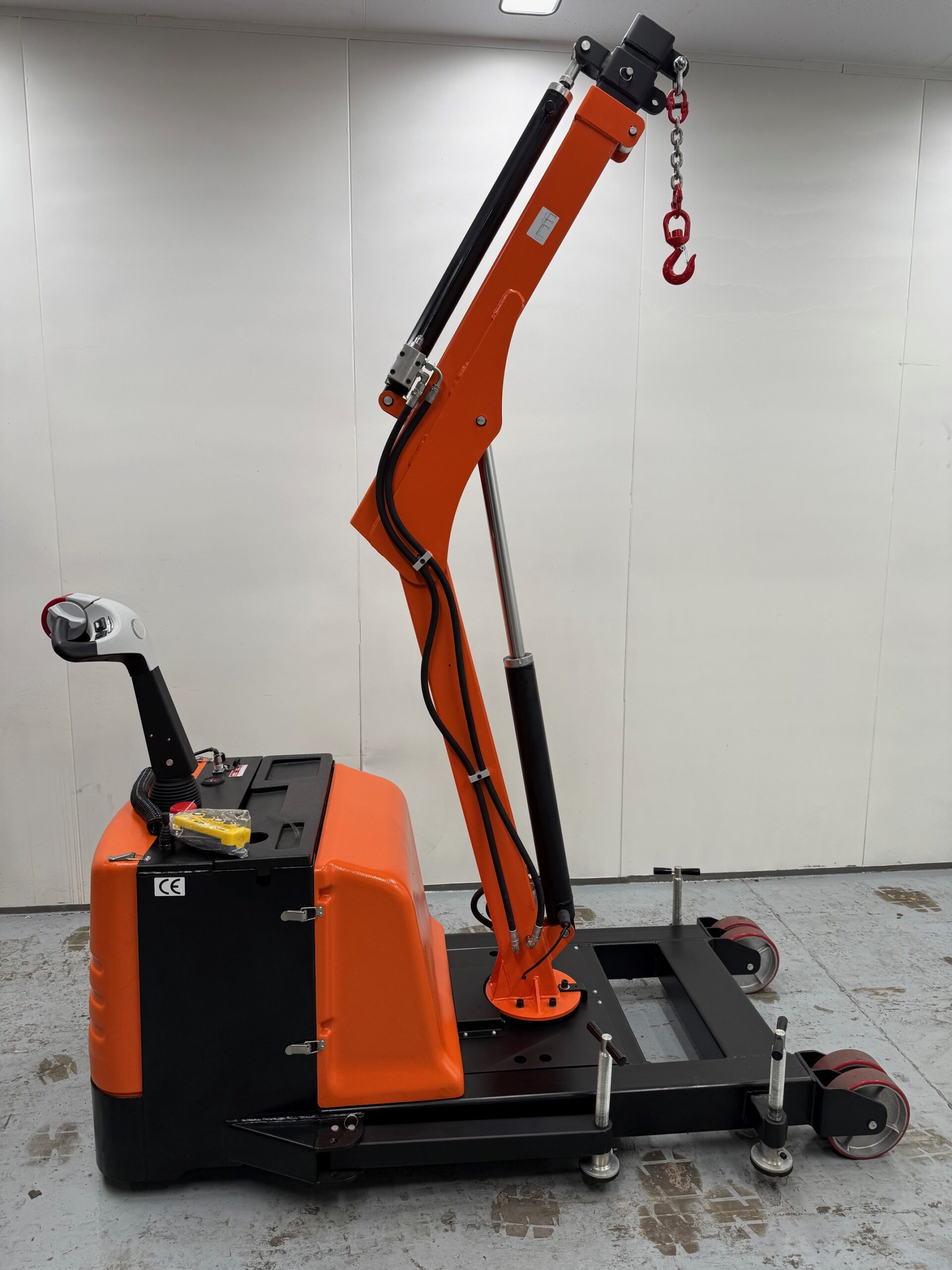

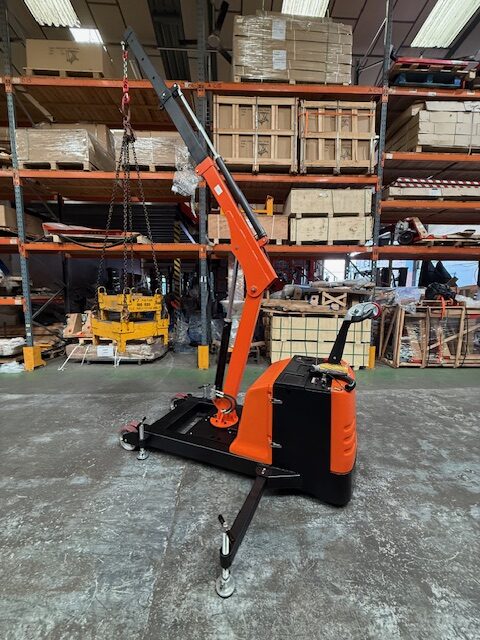

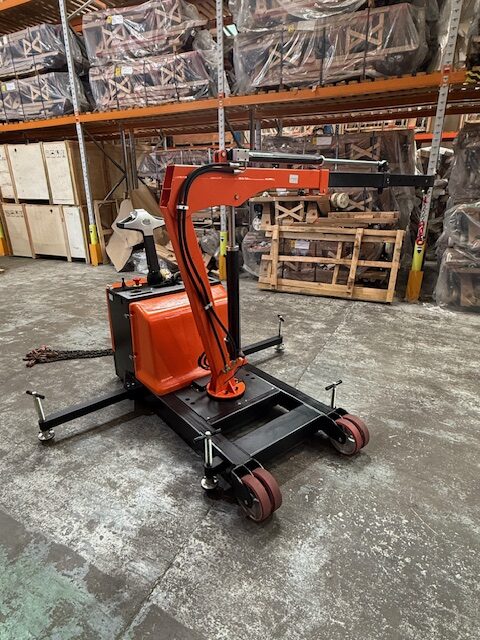

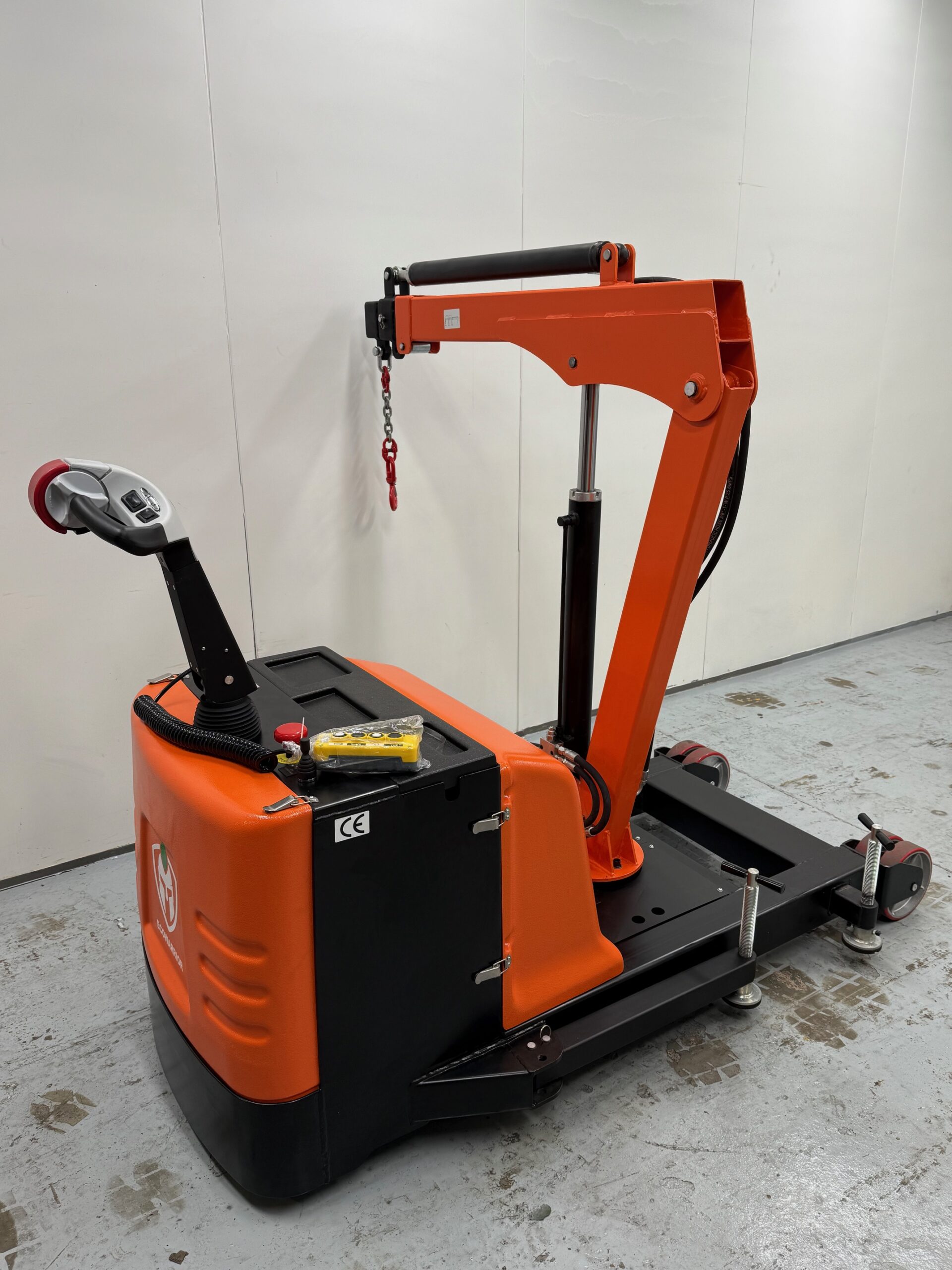

Warrior 900kg Full Electric Rotating Counterbalanced Workshop Crane with Slewing Jib

Description

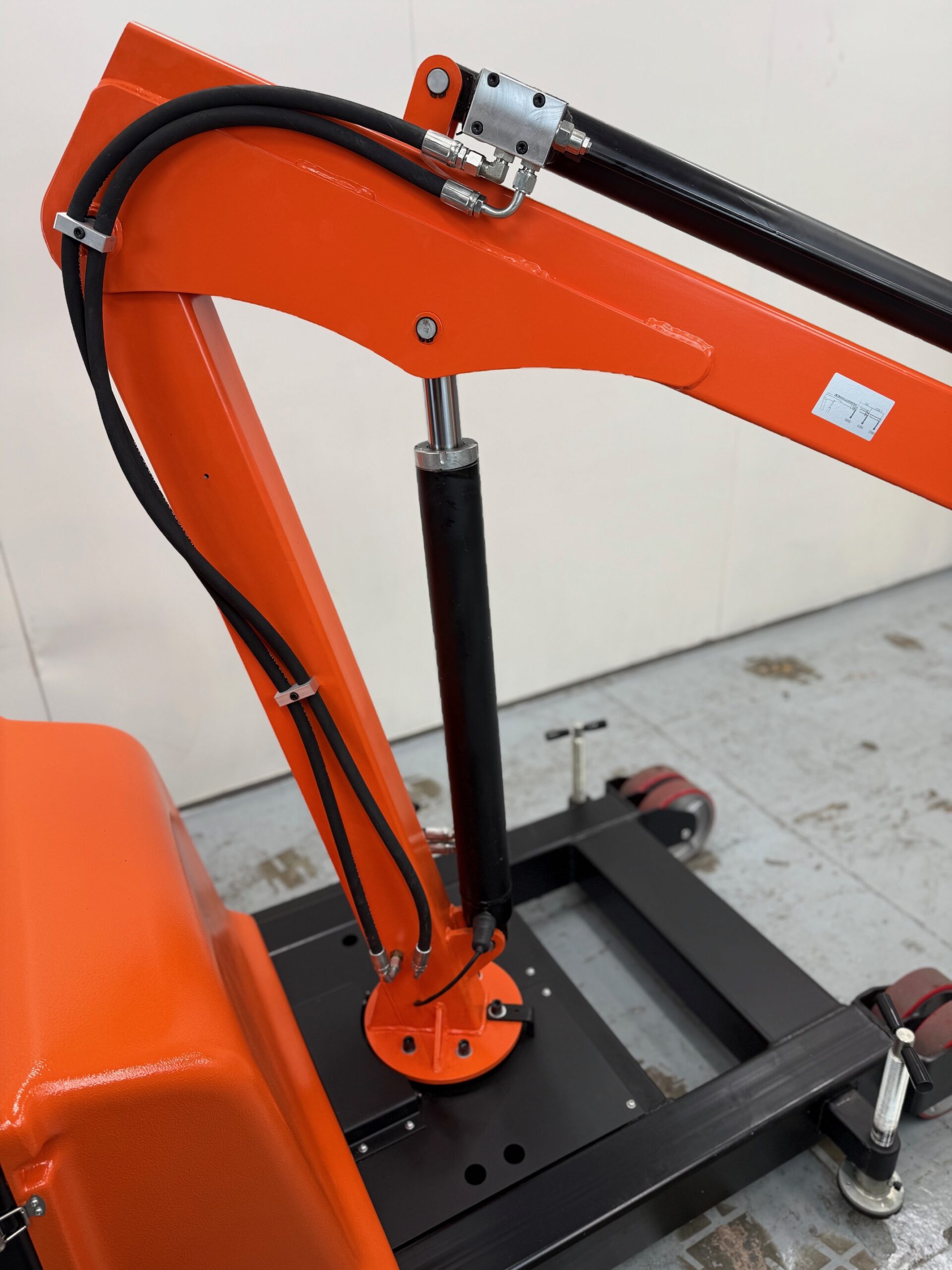

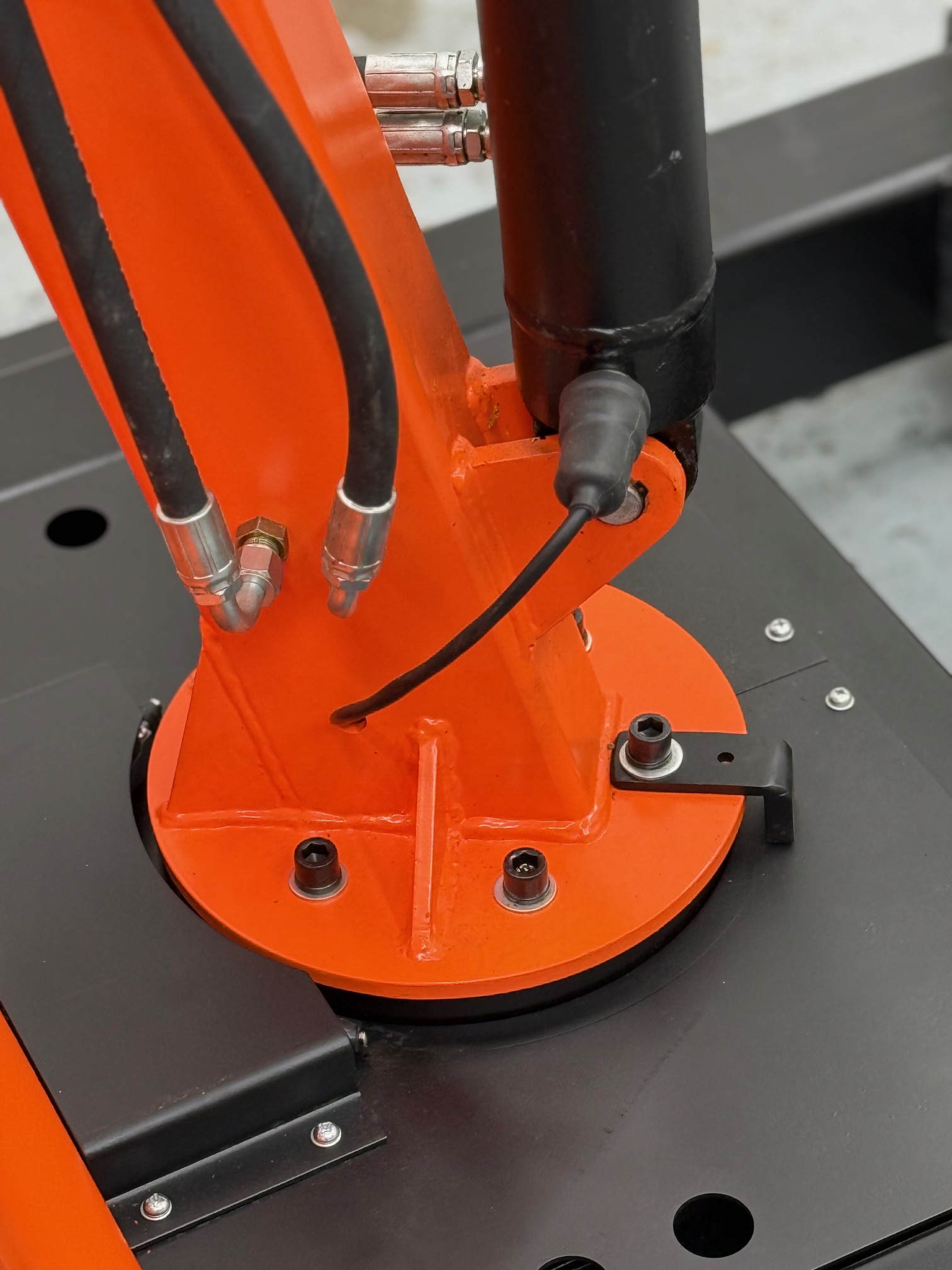

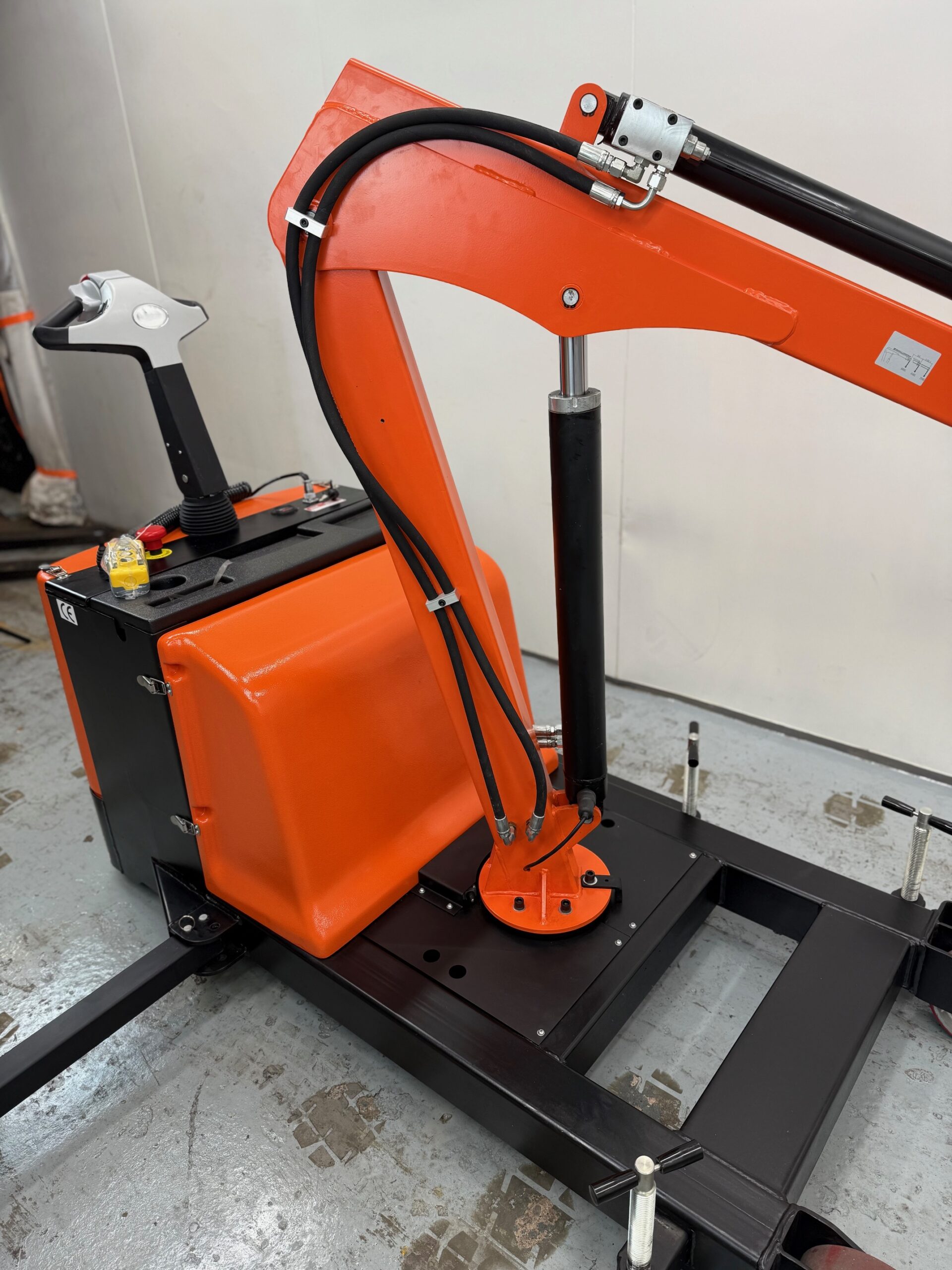

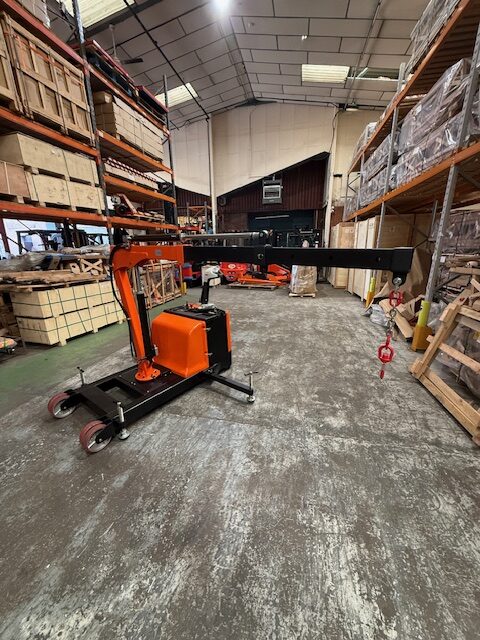

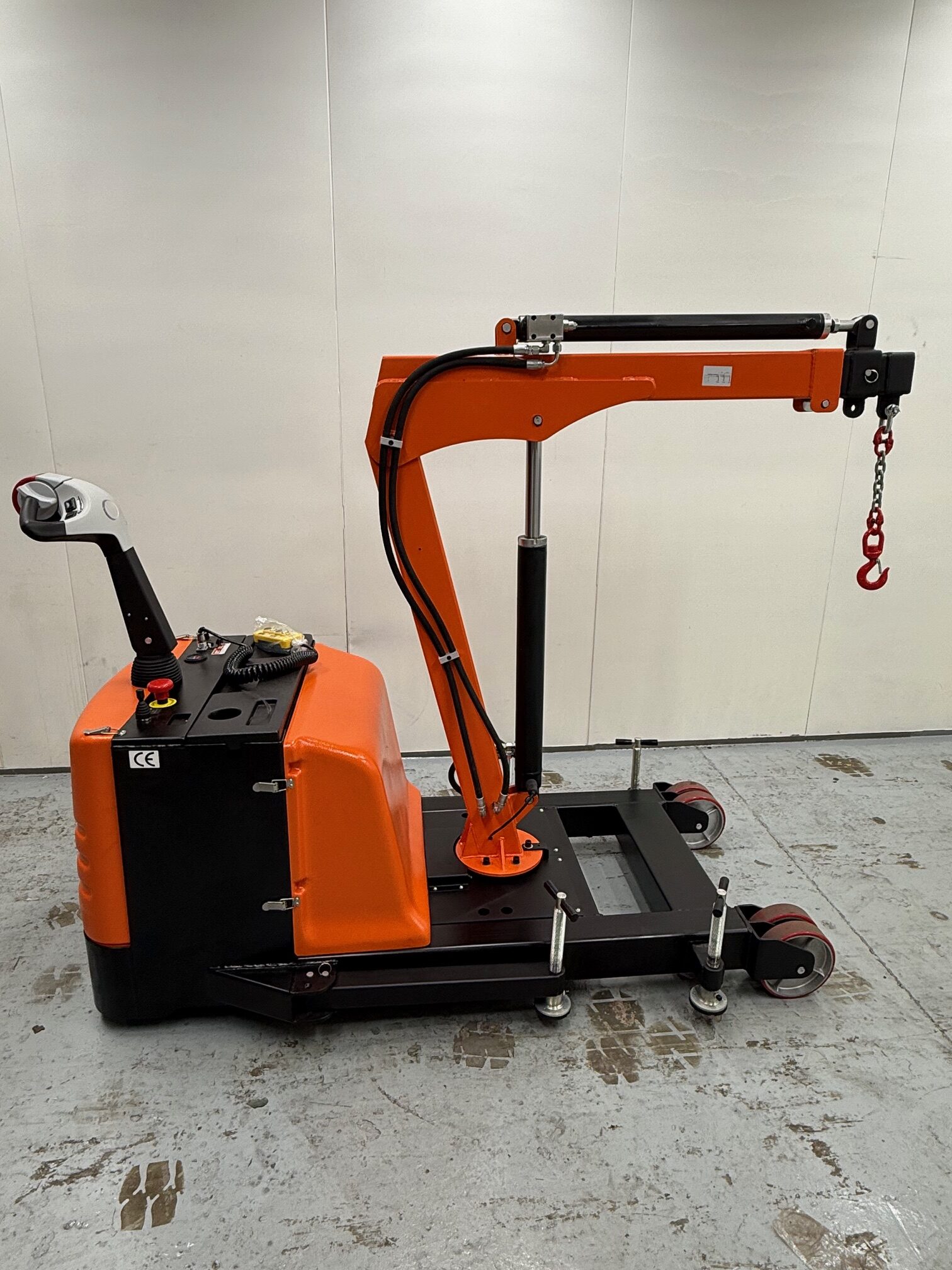

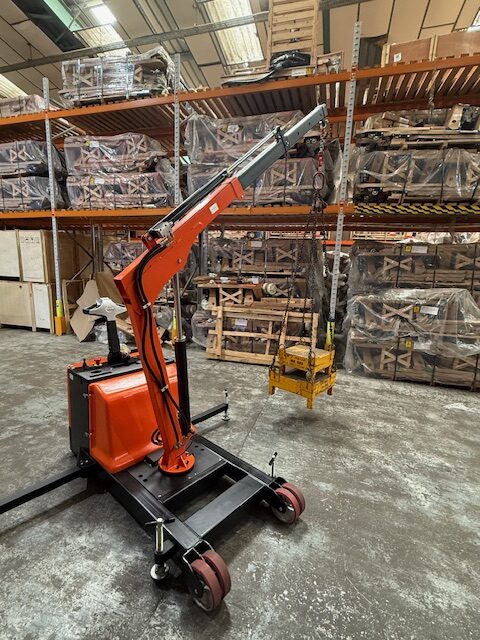

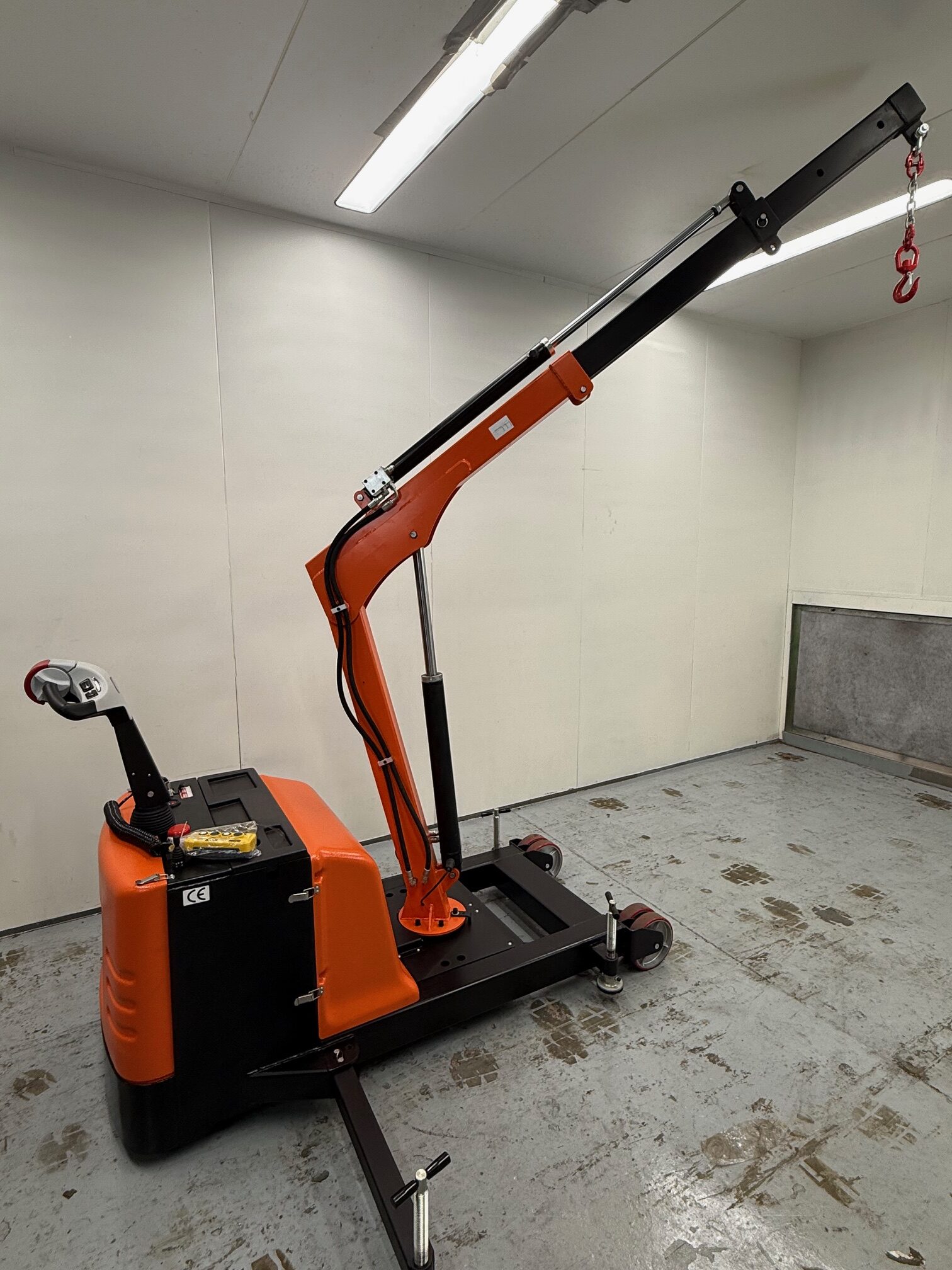

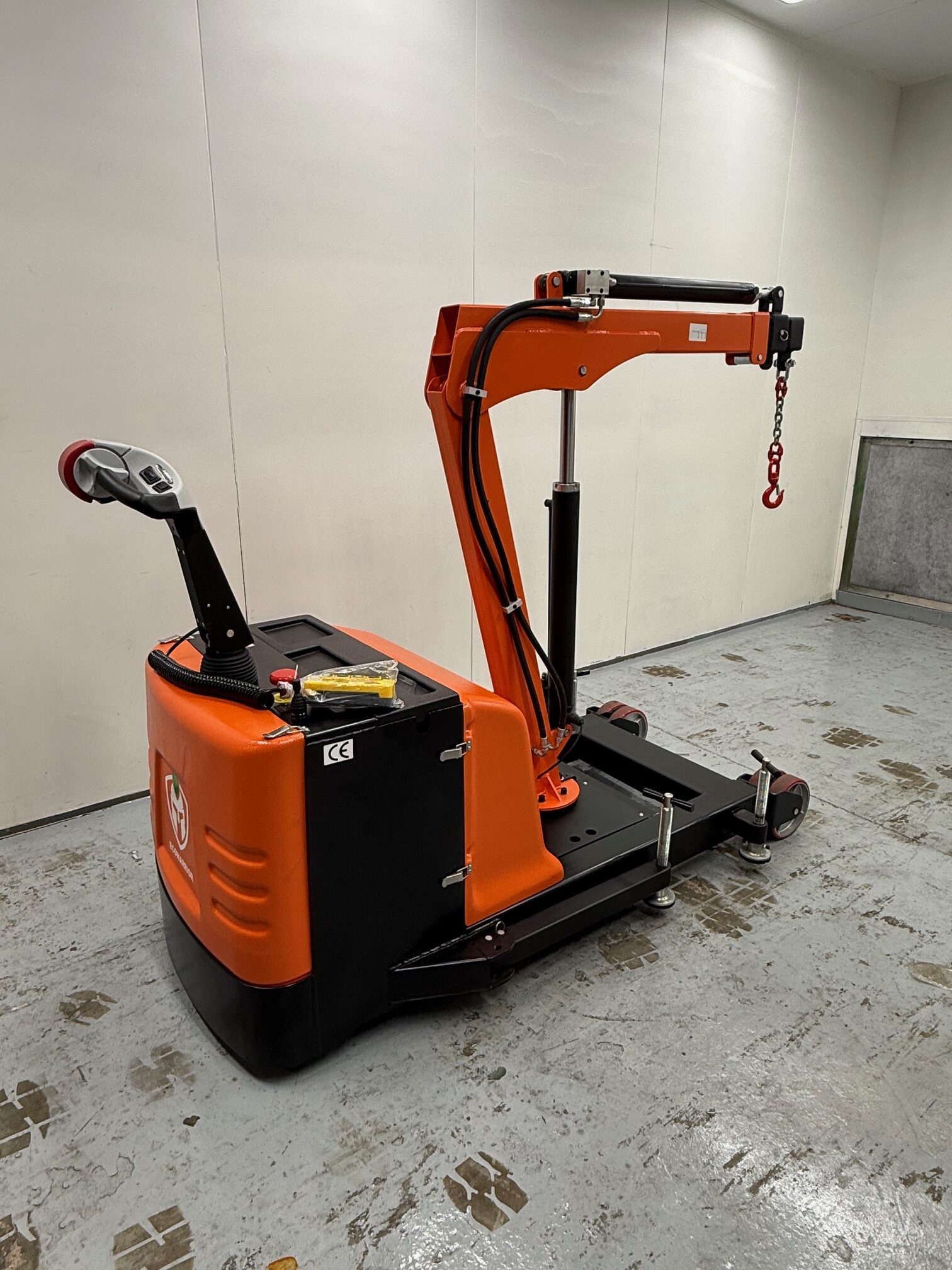

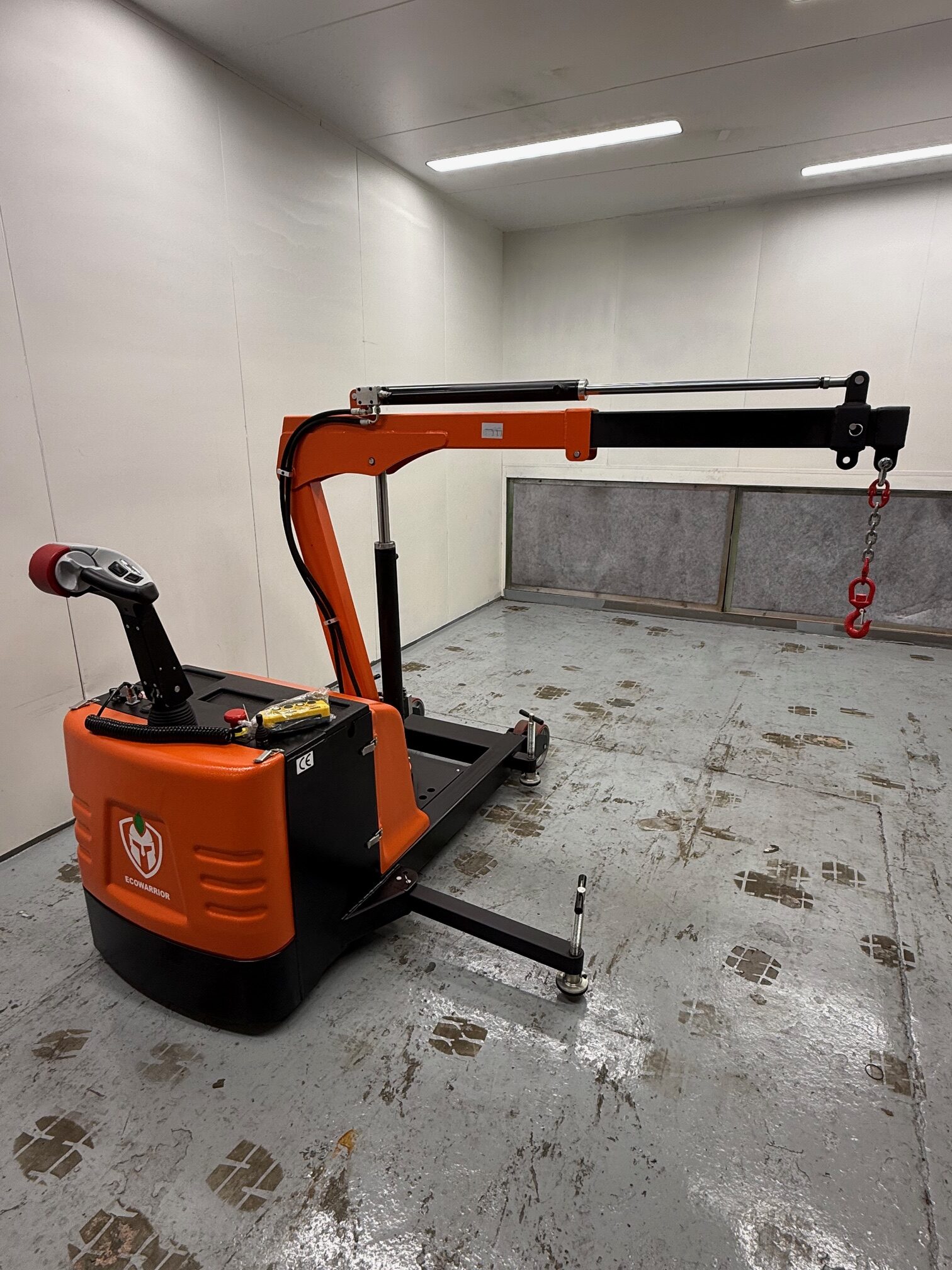

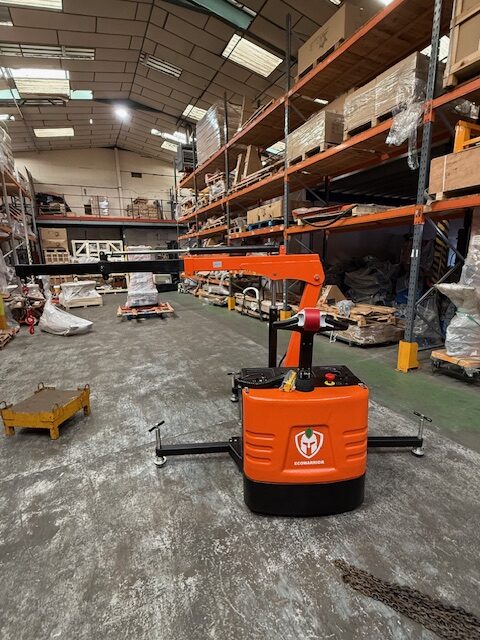

The Warrior 900kg Full Electric Rotating Counterbalanced Crane with 360 degree slewing jib is mobile free standing workshop crane which has the ability to safely slew its jib through 360 degrees. The built in ballast weight which counterbalances the crane jib is mounted on a precision engineered slewing ring which allows maximum accessibility. Its has a five function hydraulic distributor which allows for adjustable and smooth jib lifting, lowering, extension and retraction.  Lowering speed can be reduced through a knob.

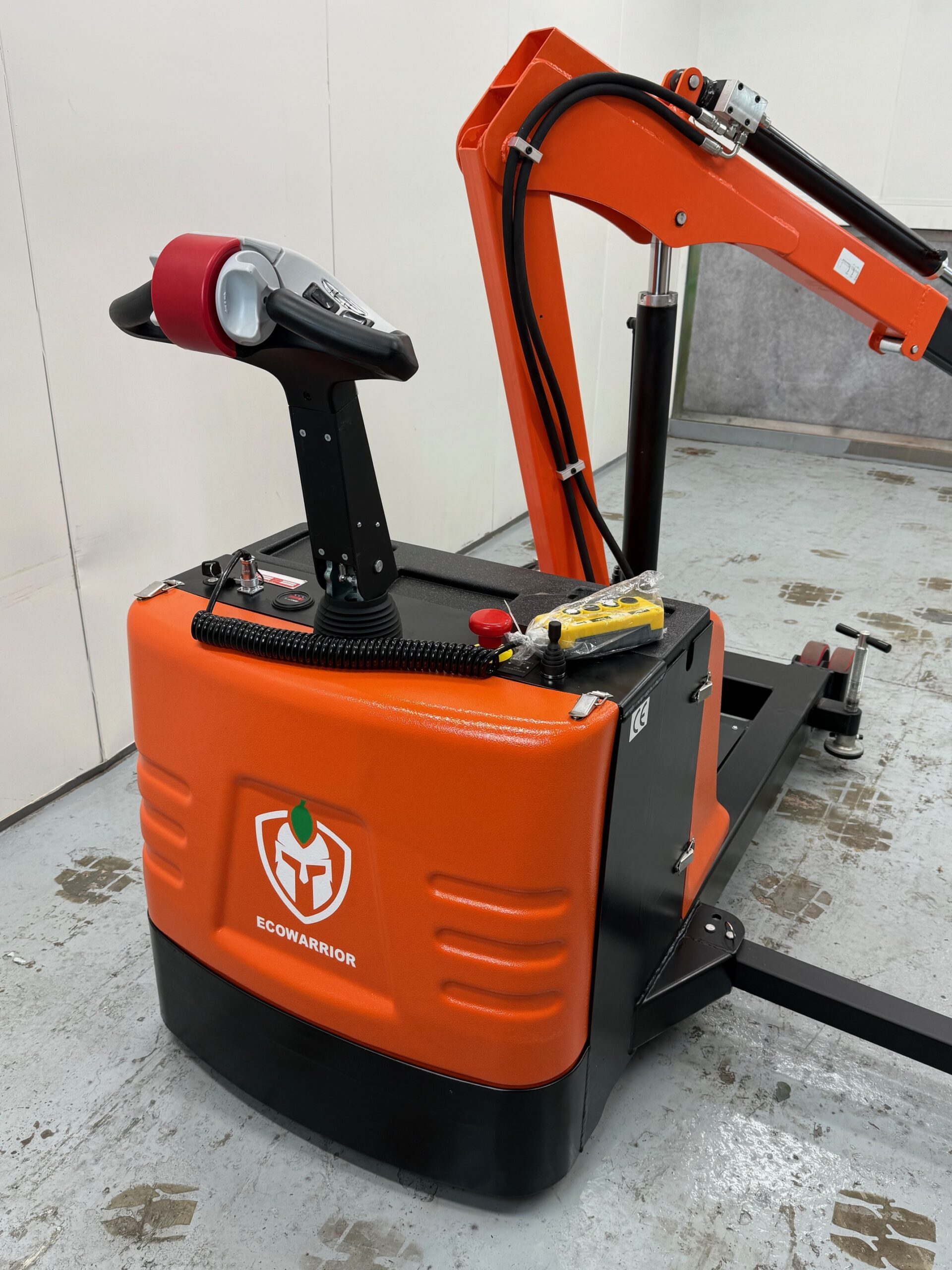

The lifting system is full electric with a key switch voltmeter with an emergency stop button and lockable rotation.

Counterbalanced floor cranes with a high capacity slewing jib are the perfect solution for those industries that choose not to invest in fixed structures in order to have the possibility to modify their layout without constraints. These are primarily useful in tooling environments

• Capacity:- 900kg/450kg/250kg
• Lift Height:- 3180mm
• Overall Dimensions (l x w x h):- 2090 x 950 x 1550mm
• Battery:- 2 x 12V/120Ah Lead Acid
• Charger:- 24V/15A
• Fully Charge Time:- 8 Hours
• Controller:- 2207A-5102
• Drive Motor:- 24V/1000W
• Lift Motor:- 245V/2000W
• Wheel Base:- 1600mm
• Handle Height:- 1300mm
• Drive Wheel:- 250 x 80mm diameter
• Front Wheel:- 200 x 50mm diameter
• Load Drive Speed:- 4.0km/h
• Unload Drive Speed:- 4.5km/h
• Load Gradeability:- 5%
• Unload Gradeability:- 10%
• CE Marked
• NOTE THIS CRANE IS SUPPLIED COMPLETE WITH COUNTERBALANCE UNLIKE OTHERS ON THE MARKET WHERE YOU NEED TO ADD YOUR OWN!!

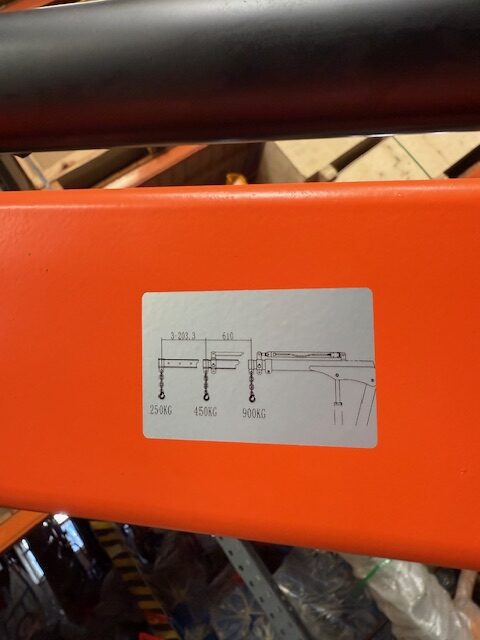

Capacity/Position:- 250kg @
450kg @
900kg @
